StarTech.com Parallel/serial combo card - PCI - parallel, serial - 3 ports - Add a parallel port and two RS-232 serial ports to

Reference: STCPCI2S1P

Condition: New product

Manufacturer:

99999 Items

$53.07

More info

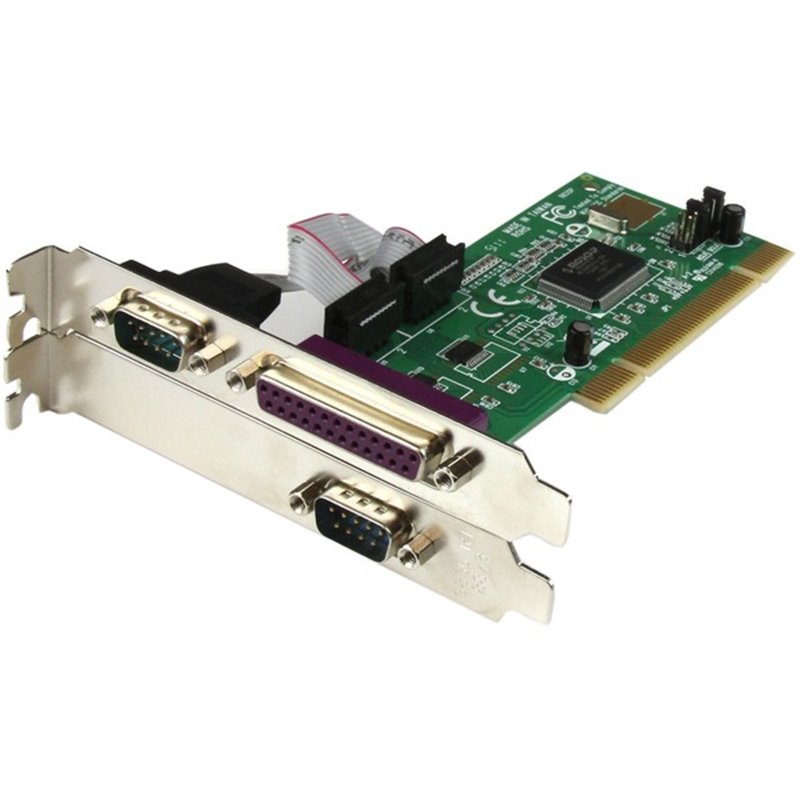

The PCI2S1P PCI Serial/Parallel Combo Card turns a PCI slot into two external 16C550 serial ports and one external EPP/ECP parallel port - an all-in-one solution that gives you both parallel and serial connections while taking up only one PCI slot. Suitable for installation in a small form factor computer, the PCI serial/parallel card includes an optional low profile/half-height mounting bracket that makes installation easy. The serial/parallel combo card is PCI plug and play ready and supports IRQ sharing for fast, simple installation. The combo card is supported in virtually any Microsoft Windows operating environment (Windows® 7, Server 2008 R2, Vista, XP, ME, 2000, 98, 95 and NT4), and is backed by a StarTech.com Lifetime Warranty and free lifetime technical support.

General Information
Manufacturer:StarTech.com
Manufacturer Part Number:PCI2S1P
Manufacturer Website Address:http://www.startech.com
Brand Name:StarTech.com
Product Name:2S1P PCI Serial Parallel Combo Card with 16550 UART
Marketing Information:

The PCI2S1P PCI Serial/Parallel Combo Card turns a PCI slot into two external 16C550 serial ports and one external EPP/ECP parallel port - an all-in-one solution that gives you both parallel and serial connections while taking up only one PCI slot.

Suitable for installation in a small form factor computer, the PCI serial/parallel card includes an optional low profile/half-height mounting bracket that makes installation easy.

The serial/parallel combo card is PCI plug and play ready and supports IRQ sharing for fast, simple installation. The combo card is supported in virtually any Microsoft Windows operating environment (Windows® 7, Server 2008 R2, Vista, XP, ME, 2000, 98, 95 and NT4), and is backed by a StarTech.com Lifetime Warranty and free lifetime technical support.


Packaged Quantity:1
Product Type:Serial/Parallel Combo Adapter

Technical Information
Host Interface:PCI
Data Transfer Rate:Up to 430kB/s Serial Port
UART Type:16550
Parallel Port Modes:EPP/ECP
Interfaces/Ports
Number of Parallel Ports (External):1
Number of Serial Ports (External):1
Physical Characteristics
Form Factor:Plug-in Card
Card Height:Low-profile
Height:4.7"
Width:0.8"
Length:4.7"
Weight (Approximate):2.30 oz
Miscellaneous
Package Contents:
  • 2S1P PCI Serial Parallel Combo Card with 16550 UART
  • 1 x DB9 Ribbon Cable
  • 3 x Low Profile Brackets
  • 1 x Driver CD
  • 1 x Instruction Manual

Additional Information:
  • Guaranteed compatibility with any PC running Windows, DOS or Linux for simple integration into your application
  • All three ports share only one IRQ, minimizing system resources required for the card
  • Easy to install and use with full step-by-step instruction providing a hassle free serial solution

Environmentally Friendly:Yes
Country of Origin:Taiwan
TAA Compliant:Yes
Warranty
Limited Warranty:Lifetime
