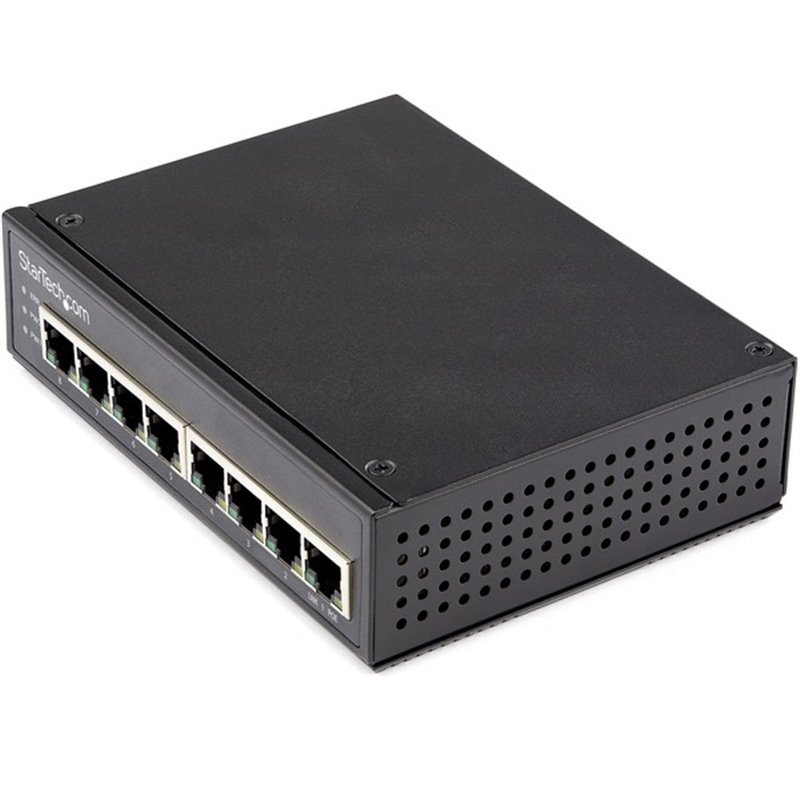

StarTech.com Industrial 8 Port Gigabit PoE Switch 30W - Power Over Ethernet Switch - GbE POE+ Network Switch - Unmanaged - IP-30

Reference: STCIESC1G80UP

Condition: New product

Manufacturer:

99999 Items

$581.65

More info

This industrial 8 port gigabit PoE switch features 30W of power and is designed to be installed in harsh environments and supports up to a total of 200W power outputs. Includes hardware for DIN rail or wall mounting. For Demanding Environments Where No Fiber Connections Are Required Using Cat 5e (or higher rated) Ethernet cabling, this Ethernet switch Provides up to 30W of PSE power per PoE port (PSE) to IEEE 802.3af (PoE / Type 1) and IEEE 802.3at (PoE+ / Type 2) PD devices like: Cameras Sensors Wi-Fi Access Points High total power budget with high PoE port count at a maximum of 30 watts per port, up to 200 watts max. Power provided in order of device connection; max 6 802.3at (30W) devices (180W total) at any time. Truly Industrial for Devices That Must Function Under Harsh Conditions Industrial features include: Operating Temperature Range: -40 C to 75 C IP-30 rated housing Vibration, shock, and free-fall standard testing This Ethernet switch supports additional features such as redundant power inputs, 2kV surge protection on RJ45 ports, and an MTBF of 500,000+ hrs (Telcordia/Bellcore) at 50°C, for long-term reliability.

General Information
Manufacturer:StarTech.com
Manufacturer Part Number:IESC1G80UP
Manufacturer Website Address:http://www.startech.com
Brand Name:StarTech.com
Product Name:Ethernet Switch
Marketing Information:

This industrial 8 port gigabit PoE switch features 30W of power and is designed to be installed in harsh environments and supports up to a total of 200W power outputs. Includes hardware for DIN rail or wall mounting.

For Demanding Environments Where No Fiber Connections Are Required

Using Cat 5e (or higher rated) Ethernet cabling, this Ethernet switch Provides up to 30W of PSE power per PoE port (PSE) to IEEE 802.3af (PoE / Type 1) and IEEE 802.3at (PoE+ / Type 2) PD devices like:

  • Cameras
  • Sensors
  • Wi-Fi Access Points

High total power budget with high PoE port count at a maximum of 30 watts per port, up to 200 watts max. Power provided in order of device connection; max 6 802.3at (30W) devices (180W total) at any time.

Truly Industrial for Devices That Must Function Under Harsh Conditions

Industrial features include:

  • Operating Temperature Range: -40 C to 75 C
  • IP-30 rated housing
  • Vibration, shock, and free-fall standard testing

This Ethernet switch supports additional features such as redundant power inputs, 2kV surge protection on RJ45 ports, and an MTBF of 500,000+ hrs (Telcordia/Bellcore) at 50°C, for long-term reliability.


Product Type:Ethernet Switch

Interfaces/Ports
Total Number of Network Ports:8
Network (RJ-45):Yes
Port/Expansion Slot Details:8 x Gigabit Ethernet PoE+
Media & Performance
Media Type Supported:Twisted Pair
Ethernet Technology:Gigabit Ethernet
Network Technology:10/100/1000Base-T
Network & Communication
Layer Supported:2
Networking Standards:IEEE 802.3x
Management & Protocols
Manageable:No
Power Description
PoE (RJ-45) Port:Yes
PoE Budget:200 W
Power Source:PoE+
Power Consumption:206 W
Plug/Connector Type:Terminal Block
Physical Characteristics
Product Material:Steel
Form Factor:
  • DIN Rail Mountable
  • Wall Mountable

Height:1.6"
Width:4.1"
Length:5.6"
Weight (Approximate):1.18 lb
Miscellaneous
Package Contents:
  • Ethernet Switch
  • Mounting Hardware Kit
  • Quick-Start Guide
  • Terminal Block

Environmentally Friendly:Yes
Country of Origin:Taiwan
Warranty
Limited Warranty:2 Year
