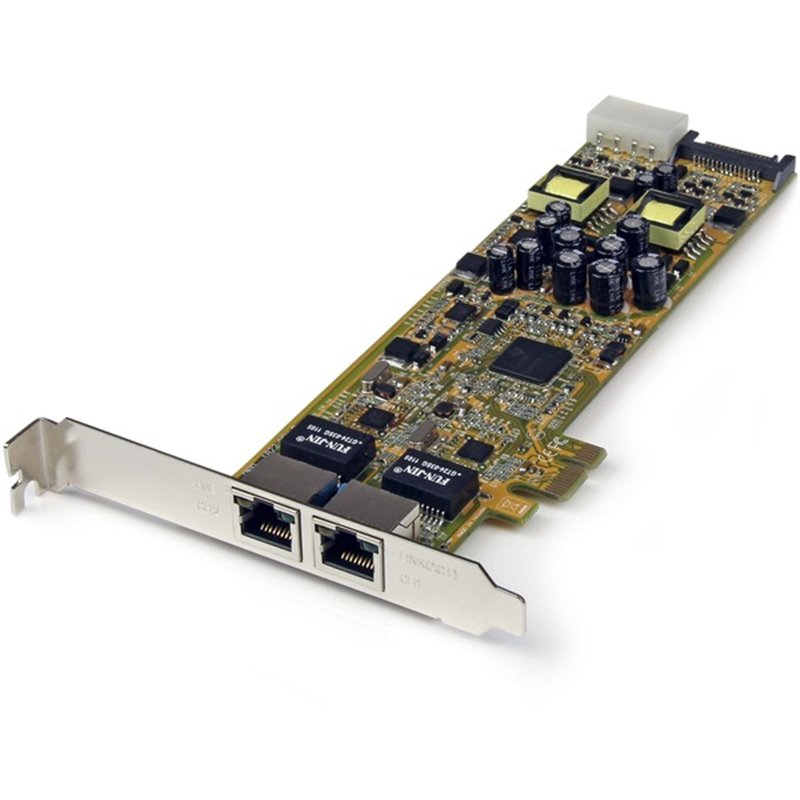

StarTech.com Dual Port PCI Express Gigabit Ethernet PCIe Network Card Adapter - PoE/PSE - Add two Power-over-Ethernet Gigabit Po

Reference: STCST2000PEXPSE

Condition: New product

Manufacturer:

99999 Items

$254.99

More info

The ST2000PEXPSE Dual Port PoE NIC provides two 10/100/1000 Mbps PoE RJ45 ports that can provide up to 25.5W of power each, combining a network data connection and power on a single cable, for less clutter and convenient installations in remote locations. This full/low profile Gigabit server adapter supports the IEEE 802.3at (Type 1 and 2) standard for a Power Sourcing Equipment (PSE) device, and can deliver 48V DC power to compliant Powered Devices (PD). This eliminates the need for a separate power source and cable for remote networked devices such as IP cameras, IP phones and wireless access points. Suitable for any PCI Express-enabled client, server or workstation, this versatile PoE network adapter supports features such as Jumbo Frames, VLAN tagging and Wake on LAN (WOL). The ST2000PEXPSE PoE NIC is backed by a StarTech.com 2-year warranty and free lifetime technical support.

General Information
Manufacturer:StarTech.com
Manufacturer Part Number:ST2000PEXPSE
Manufacturer Website Address:http://www.startech.com
Brand Name:StarTech.com
Product Name:Dual Port PCI Express Gigabit Ethernet PCIe Network Card Adapter - PoE/PSE
Marketing Information:The ST2000PEXPSE Dual Port PoE NIC provides two 10/100/1000 Mbps PoE RJ45 ports that can provide up to 25.5W of power each, combining a network data connection and power on a single cable, for less clutter and convenient installations in remote locations.

This full/low profile Gigabit server adapter supports the IEEE 802.3at (Type 1 and 2) standard for a Power Sourcing Equipment (PSE) device, and can deliver 48V DC power to compliant Powered Devices (PD). This eliminates the need for a separate power source and cable for remote networked devices such as IP cameras, IP phones and wireless access points.

Suitable for any PCI Express-enabled client, server or workstation, this versatile PoE network adapter supports features such as Jumbo Frames, VLAN tagging and Wake on LAN (WOL).

The ST2000PEXPSE PoE NIC is backed by a StarTech.com 2-year warranty and free lifetime technical support.


Packaged Quantity:1
Product Type:Gigabit Ethernet Card

Technical Information
Chipset Manufacturer:Realtek
Chipset Model:RTL8111E
Interfaces/Ports
Host Interface:PCI Express
Total Number of Ports:2
Network (RJ-45):Yes
USB:No
Serial Port:No
Ethernet AUI:No
XJACK:No
PoE (RJ-45) Port:Yes
Number of Network (RJ-45) Ports:2
Media & Performance
Media Type Supported:Twisted Pair
Network & Communication
Network Technology:10/100/1000Base-T
InfiniBand:No
Physical Characteristics
Card Height:Full-height
Form Factor:Plug-in Card
Height:2.7"
Width:0.7"
Thickness:700 mil
Weight (Approximate):3.70 oz
Miscellaneous
Package Contents:
  • Dual Port PCI Express Gigabit Ethernet PCIe Network Card Adapter - PoE/PSE
  • 1 x Low-Profile Bracket
  • 1 x Driver CD
  • 1 x Instruction Manual

Device Supported:PC
System Requirements:
  • Windows® 2000, XP, Vista, 7, 8, 8.1, 10
  • Windows Server® 2003, 2008 R2, 2012, 2012 R2, 2016, 2019
  • Mac OS X® 10.6 to 10.9
  • Linux 2.4.x to 4.11.x LTS Versions Only

Environmentally Friendly:Yes
Environmental Certification:RoHS
Country of Origin:Taiwan
