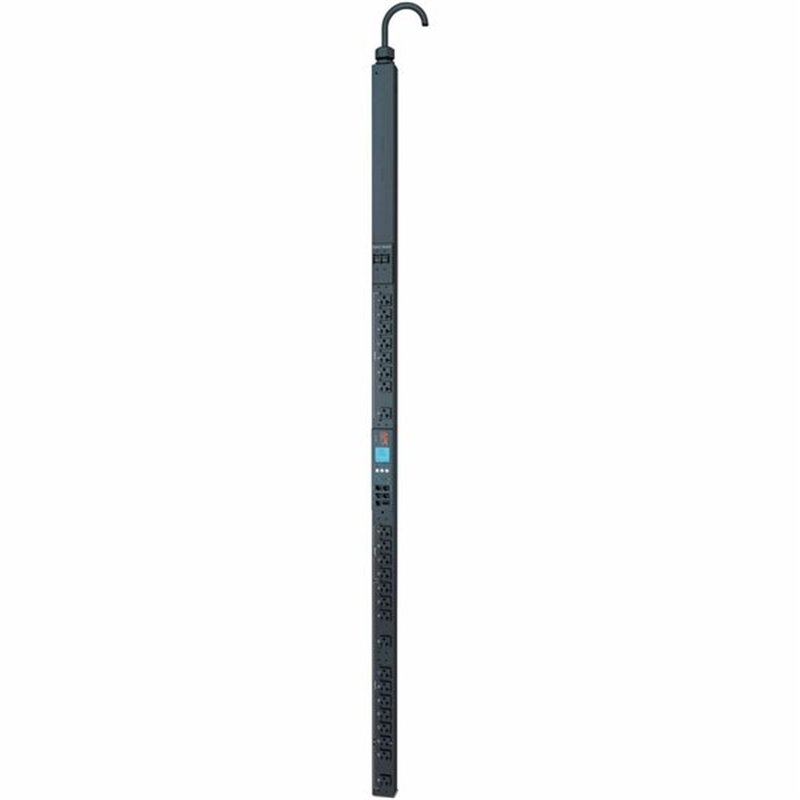

APC by Schneider Electric Metered-by-Outlet with Switching Rack PDU - Metered-by-Outlet - NEMA L5-30P - 24 x NEMA 5-20R - 100 V,

Reference: APWAP8632

Condition: New product

Manufacturer:

99999 Items

$2,819.99

More info

APC Metered by Outlet with Switching Rack Power Distribution Units (PDUs) enable advanced, user-customizable power control and individual outlet power metering. Remote outlet level controls allow power on/off functionality for power recycling to reboot locked-up equipment and to avoid unauthorized use of individual outlets. Power sequencing delays allow users to define the order in which to power up or down attached equipment. Avoid circuit overload during power recovery and extend uptime of critical equipment by prioritizing the load shedding. Current metering provides real-time remote monitoring of connected loads. Switched Rack PDUs include real power monitoring, a temperature/humidity sensor port, and locking IEC receptacles. User-defined alarms warn of potential circuit overloads before critical IT failures occur. Users can access, configure, and control Switched rack PDUs through secure Web, SNMP, or Telnet Interfaces and is complimented by Struxureware for Data Centers using Data Center Expert and Data Center Operations with Capacity and Change modules.

General Information
Manufacturer:Schneider Electric SA
Manufacturer Part Number:AP8632
Manufacturer Website Address:http://www.schneider-electric.com
Brand Name:APC by Schneider Electric
Product Name:Metered-by-Outlet with Switching Rack PDU
Marketing Information:

APC Metered by Outlet with Switching Rack Power Distribution Units (PDUs) enable advanced, user-customizable power control and individual outlet power metering. Remote outlet level controls allow power on/off functionality for power recycling to reboot locked-up equipment and to avoid unauthorized use of individual outlets. Power sequencing delays allow users to define the order in which to power up or down attached equipment. Avoid circuit overload during power recovery and extend uptime of critical equipment by prioritizing the load shedding. Current metering provides real-time remote monitoring of connected loads. Switched Rack PDUs include real power monitoring, a temperature/humidity sensor port, and locking IEC receptacles. User-defined alarms warn of potential circuit overloads before critical IT failures occur. Users can access, configure, and control Switched rack PDUs through secure Web, SNMP, or Telnet Interfaces and is complimented by Struxureware for Data Centers using Data Center Expert and Data Center Operations with Capacity and Change modules.


Packaged Quantity:1 Each
Product Type:PDU
Technical Information
PDU Type:Metered-by-Outlet
Plug/Connector Type:NEMA L5-30P
Receptacle Type:NEMA 5-20R
Receptacle Detail:24 x NEMA 5-20R
Protection Type:Overload Protection
Power Description
Input Voltage:
  • 100 V
  • 120 V

Output Voltage:100 V AC
Power Rating (VA):2880 VA
Input Current:30 A
Management
Management:
  • Web
  • SNMP
  • Telnet

Physical Characteristics
Color Family:Black
Product Color:Black
Mount Type:Rack-mountable
Form Factor:Tower
Rack Height:0U
Number of Cord/Cable:1
Cord Length:9.84 ft
Height:72"
Width:2.2"
Depth:2"
Weight (Approximate):17.75 lb
Miscellaneous
Package Contents:
  • Metered-by-Outlet with Switching Rack PDU
  • Installation guide
  • Rack mounting brackets
  • Safety guide
  • Serial configuration cable

    • Certifications & Standards:cUL Listed|PSE|UL Listed
    Environmentally Friendly:Yes
    Environmental Certification:RoHS
    Green Premium:Yes
    Optimized Energy Efficiency:Yes
    Product Take Back Program:Yes
    REACH free of SVHC:No
    Mercury Free:Yes
    Lead Free:Yes
    RoHS Exemption Information:https://download.schneider-electric.com/files?p_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=AP8632_ROHS_DECLARATION&p_FileName=AP8632KIT_ROHS_DECLARATION_US.pdf
    REACH Declaration URL:https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfReach&pid=433134854&lang=en-us
    EU RoHS Declaration URL:https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=433134854&lang=en-us
    Environmental Profile Availability:https://download.schneider-electric.com/files?p_enDocType=Environmental+Disclosure&p_Doc_Ref=ENVPEP1512009_V1
    End of Life Manual Availability:https://download.schneider-electric.com/files?p_enDocType=Circularity+Profile&p_Doc_Ref=ENVEOLI1512009_V1
    Warranty
    Limited Warranty:2 Year
    Additional Warranty Information:2 years repair or replace
